Onboarding

📘

Source Code

You can find the full source code and documentation for this workflow on GitHub: Device Onboarding

This script automates the complete onboarding journey of factory-default devices in HPE Aruba Networking Central. It takes devices from an unassigned state in GreenLake Platform (GLP) through both GLP onboarding and Central onboarding to make them ready for configuration via New Central.

Phase 1: GLP (GreenLake Platform) Onboarding (Optional)

  • Takes unassigned devices in GLP and assigns them to HPE Aruba Networking Central application instances
  • Applies subscription licenses using subscription keys to enable Central management

Phase 2: Central Onboarding (Required)

  • Site creation and device assignment
  • Device persona configuration
  • Device group management and assignment
  • Provisioning verification

🚧

Important

For Central-only onboarding (when skipping GLP onboarding): Devices must already be assigned to your Central application with valid subscriptions. They will typically be in the default group and should not be assigned to any site.

Prerequisites

  • Factory-default devices added to your GreenLake Platform account
  • API credentials for both New Central and Classic Central
  • Network connectivity between devices and Central
  • If you have have onboarded device to GLP & is only looking to onboard to Central, ensure that the devices are not assigned to any site & is in the default group

Installation

  1. Clone the repository and navigate to this workflow folder
git clone -b "v2(pre-release)" https://github.com/aruba/central-python-workflows.git
cd central-python-workflows/device-onboarding
  1. Create and activate a virtual environment, then install dependencies
python3 -m venv venv
source venv/bin/activate  # On Windows use: venv\Scripts\activate
pip install -r requirements.txt

This workflow is tested on the pycentral SDK. Please check compatibility before executing on older/newer versions as there may be changes.

Configuration

Credentials Configuration

New HPE Aruba Networking Central & GLP Credentials (account_credentials.yaml)

For API operations in new HPE Aruba Networking Central & GLP:

new_central:
    cluster_name: <cluster-name>  # or base_url: <central-api-base-url>
    client_id: <new-central-client-id>
    client_secret: <new-central-client-secret>
glp:
    client_id: <glp-client-id>
    client_secret: <glp-client-secret>

Sample Input: See account_credentials.yaml in this repository for an example credential file.

👍

Tip

Where to find these:

Classic HPE Aruba Networking Central Credentials (classic_central_credentials.yaml)

For some operations that still require classic Central:

central_info:
  base_url: <classic_central_base_url>
  token:
    access_token: <classic_central_access_token>
  ssl_verify: true

Sample Input: See classic_central_credentials.yaml in this repository for an example credential file.

👍

Tip

Where to find these:

Workflow Input Data

The workflow requires input data to be defined in a YAML file. This includes details for devices, sites, and device groups. The following example files are available in the sample-input/ directory:

Use these as templates for your own configuration files.

Sample Input File

devices:
  - serial_number: <device-serial>
    # GLP Variables (Optional - only if GLP onboarding is required)
    application_assignment:
      name: <central-application-name>
      region: <region>
    subscription_assignment:
      key: <subscription-key>
    # Central Variables (Required)
    device_type: ACCESS_POINT  # or SWITCH, GATEWAY
    persona: Campus AP  # Device function
    device_group: <group-name>
    site: <site-name>

# Site details (optional - only if you need to create new sites)
sites:
  - name: <site-name>
    address: <address>
    city: <city>
    state: <state>
    country: <country>
    zipcode: "<zipcode>"
    timezone: <timezone>

# Device group details (optional - only if you need to create new groups)
device_groups:
  - group: <group-name>
    group_attributes:
      template_info:
        Wired: false
      group_properties:
        AllowedDevTypes:
          - AccessPoints
          - Switches
          - Gateways
        Architecture: AOS10
        ApNetworkRole: Standard
        GwNetworkRole: BranchGateway
        AllowedSwitchTypes:
          - AOS_CX
        NewCentral: true  # Required for New Central compatibility

Input File Breakdown

Devices(required)
ParameterTypeRequiredDescription
serial_numberstringYesDevice serial number
device_typeenumYesACCESS_POINT, SWITCH, or GATEWAY
personastringYesDevice role (Campus AP, Access Switch, etc.). See section below for options
device_groupstringYesTarget configuration group
sitestringYesSite assignment
application_assignmentobjectNoGLP application details
subscription_assignmentobjectNoGLP subscription details

Persona Options by Device Type:

  • ACCESS_POINT: Campus AP
  • SWITCH: Access Switch, Core Switch, Aggregation Switch
  • GATEWAY: Mobility Gateway
Sites (optional - only if you need to create sites)

Provide a complete site entry under the sites block when the workflow needs to create the site in Central. All fields in the table below are required for site creation. If the target site already exists in Central, you may omit that site's entry.

FieldTypeRequiredDescription
namestringYesUnique site name (used for assignment).
addressstringYesStreet address of the site.
citystringYesCity name.
statestringYesState or region.
countrystringYesCountry name or ISO code.
zipcodestringYesPostal code (wrap in quotes).
timezonestringYesTimezone identifier (e.g., America/Chicago).
Device Group (optional - only if you need to create device groups)

If device groups(New Central compatible groups) are needed to be created for the onboarding script, then please add device group details under the device_groups entry. If the device group already exists in Central, you may omit that device group's entry.

Usage

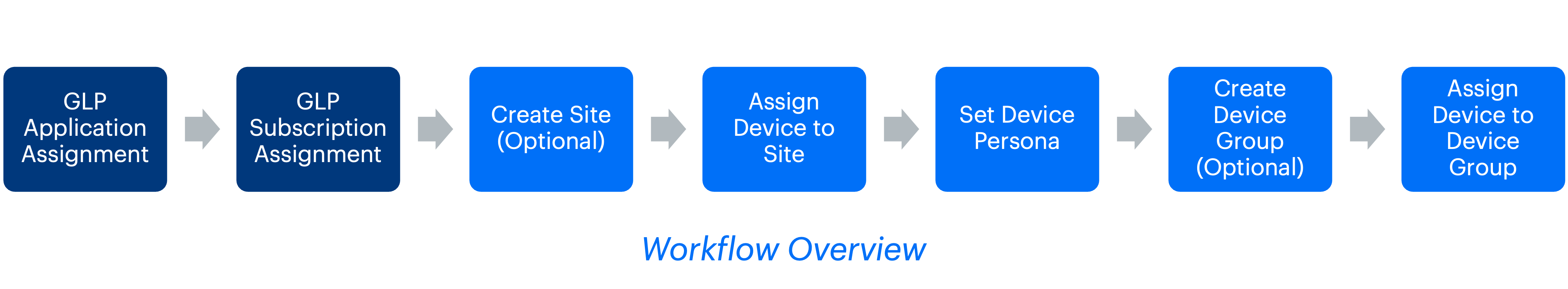

Once you have setup the configuration & input variables file, you can onboard your devices using the script. The script processes each device through these steps:

  1. Input Validation - Validates configuration file structure
  2. GLP Onboarding(Optional) - GLP Application and subscription assignment
  3. Central Onboarding
    • Create Site (If site doesn't exist)
    • Assign Device to Site
    • Set Device Persona
    • Create Device Group (If device group doesn't exist)
    • Assign Device to Device Group
  4. Verification - Confirms provisioning status

If something fails: The script skips remaining steps for that device to avoid problems.

You can use the below command to run the script -

python3 onboarding.py -c new_central_credentials.yaml -cc classic_central_credentials.yaml -vars workflow_variables.yaml

Command Line Options

FlagDescriptionRequired
-c, --credentialsNew Central API credentialsYes
-cc, --classic_credentialsClassic Central API credentialsYes
-vars, --variables_fileDevice workflow configurationYes

Output

On Screen:

  • Shows progress for each device and step
  • Color-coded success/failure indicators
  • Summary table at the end of script execution

CSV File:
Results saved to onboarding_results_<timestamp>.csv with:

  • What happened for each device and step
  • Error details if something failed

Troubleshooting

ProblemFix
Bad credentialsCheck your API tokens and permissions
GLP errorsOnly include GLP credentials if you need them
Device not respondingMake sure device can reach Central
File errorsCheck YAML syntax in your configuration files
