Internet traffic

📘

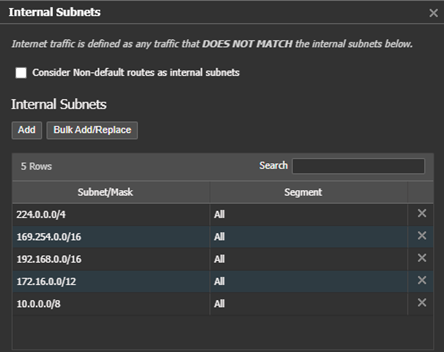

Identify non-internet (internal) traffic – default is RFC 1918

All destinations NOT in this list are internet traffic and will match BIO breakout rules.

👍

Need to route a public IP back to a datacenter? Two options:

1. Add to this list (1024 entry limit)
2. Use Routing advertisements.
   1. Check “consider non-default routes as internal subnets”.
   2. Any route in routing table will route via tunnels.
   3. Advertise route to SDWAN via BGP/OSPF/Local - control with route maps

📘

Internet subnets is Global and cannot separated on a per EdgeConnect basis.
