Security Zones

📘

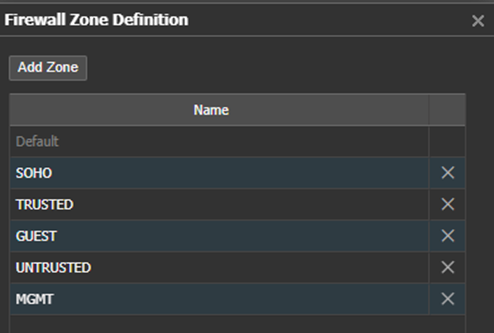

Suggested “starter” zone examples. (use names that make sense internally to your organization) (Case sensitive! Recommend ALL CAPS)

🚧

Create most used zones first, cannot change order!

📘

Segmentation is big part of networks these days, the more zones you add the more you have to manage.

❗️

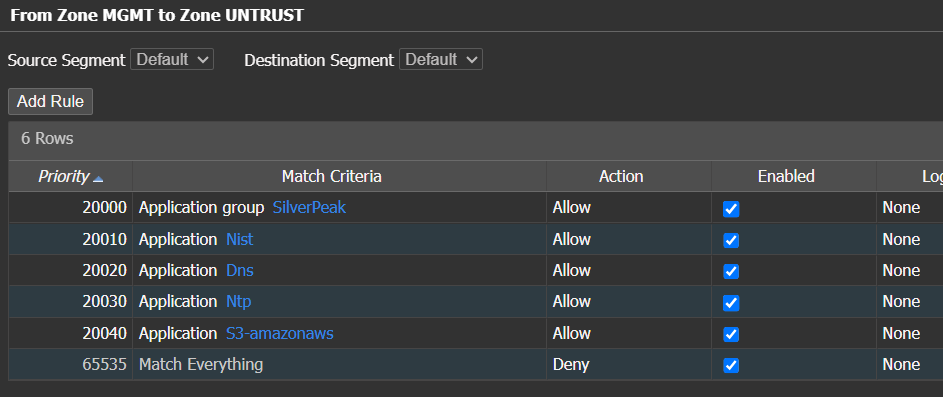

You will need the following rules for loopback with "MGMT" zone to allow EC to talk to ORCH
App group and DNS are mandatory,

NIST and NTP allow NTP time sync

S3-amazonaws - allows file to be upload directly to TAC tickets from the EC
